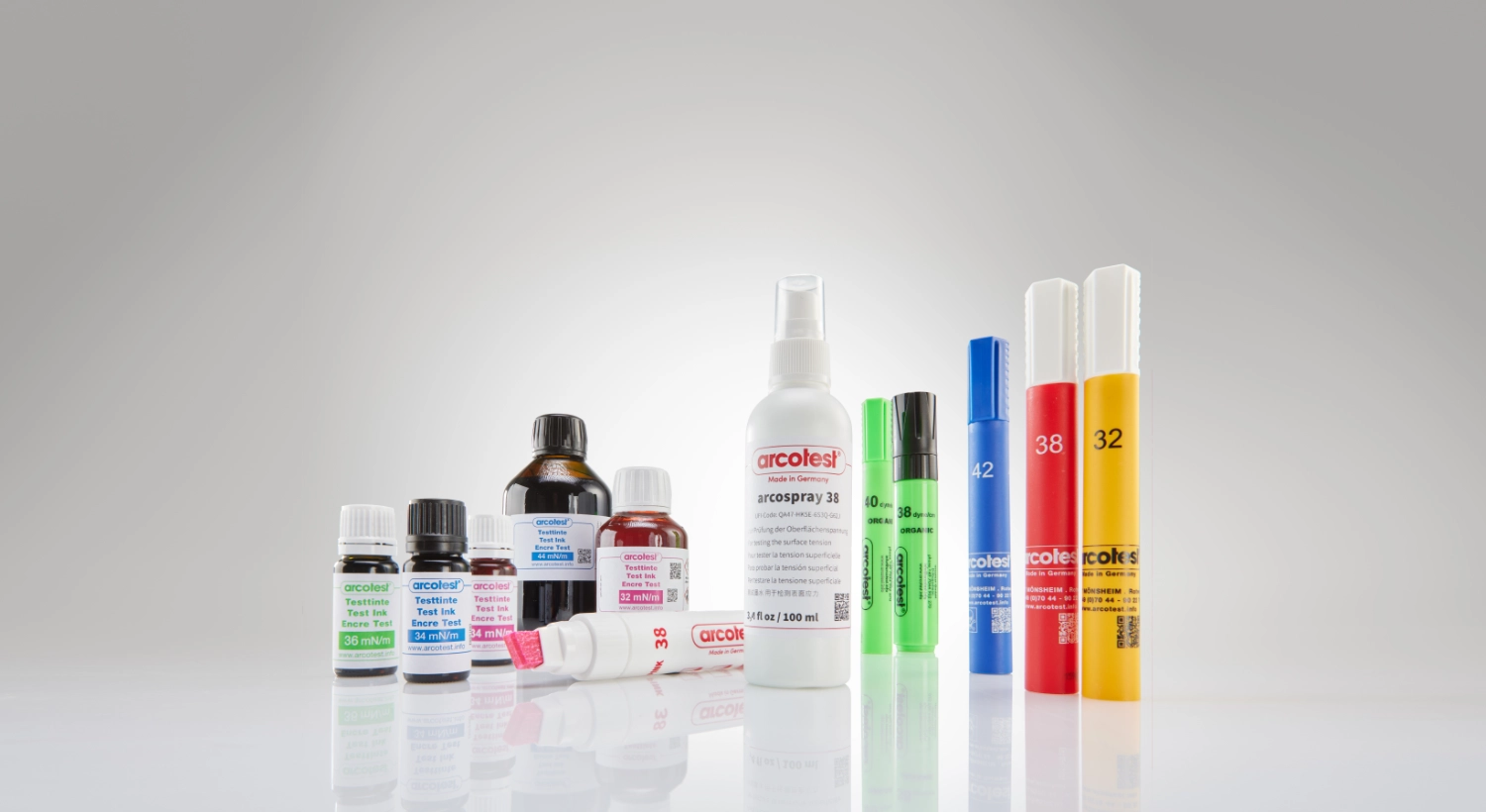

Dyne Test Inks and Dyne Test Pens
For testing the surface tension
To determine the cleanliness
of surfaces
Dyne Test Inks can make statements on the adhesive strength of printing inks, coatings and adhesives on all surfaces such as plastic, metal and glass as well as on the degree of cleanliness in dyne/cm (mN/m).
RAPIDTEST 38® Jumbo refillable
Our RAPIDTEST 38® makes it easy to test the surface tension of pre-treated plastics. The RAPIDTEST 38® enables very precise testing of the surface tension after pre-treatment of plastics such as PP and PE.
38 mN/m • 38 dyne/cm
Stroke width: 30 mm
Content: 20 ml, refillable
Ink colour: green
- perfect for quick checks on polyolefins
- optimal for testing large film areas
- easy to handle
- Smudge-proof and waterproof
- Dry in seconds
- Colour-intensive, low-odour ink
- The permanent display of the test result can be stored for quality assurance purposes
• Not harmful to the environment
• Does not cause eye damage
• Not harmful to health
The RAPIDTEST 38® is a particularly easy-to-use test device that has proven itself in daily use by manufacturers of films and moulded parts.
The RAPIDTEST 38® test ink is suitable for corona, plasma and flame testing.
A treatment can be recognised immediately by a closed colour stroke; necessary corrections to the pre-treatment can be deduced from the beading of the test ink.

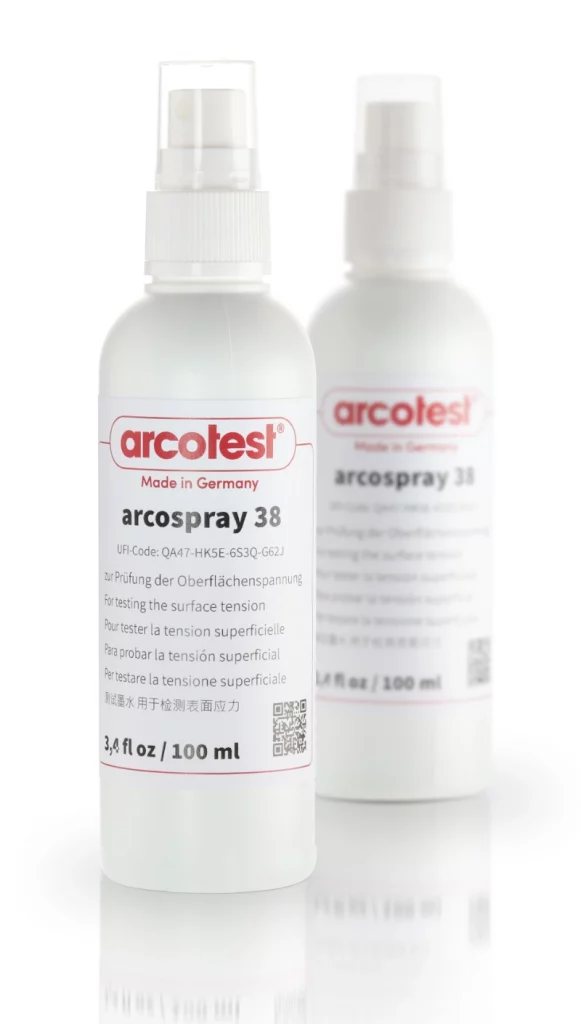

arcospray® 38
The arcospray® 38 test ink is a test liquid with a surface tension of 38 dyne/cm. It has been designed to quickly detect whether the surface is grease-free, as values equal or greater than that mean freedom from grease. After its application, arcospray® 38 can be removed without residue using oil-free clean blower air (compressed air).
Tested parts can be used further.
Not only large areas, but also very small areas, such as chain links, can be assessed quickly and easily by the arcospray® 38.
38 mN/m • 38 dyne/cm
with accuracy +/- 1.0 dyne/cm
Available in spray bottles
3,4 fl oz / 100 ml
UFI-Code: QA47-HK5E-6S3Q-G62J
- ideal for very small and large surfaces
- simple handling
- Non-toxic
- Not harmful to the environment
- Not harmful to health
- residue-free testing of surfaces
- Easy spraying of the arcospray ink
- Result visible within 2 seconds
- non-contact surface testing
Dyne Test Inks ORGANIC
- Available in a range of 30 to 46 dyne/cm surface tension
- ORGANIC test inks are label-free according to the Hazardous Substances Regulation (EC) No. 1272/2008 (CLP)
- Available in bottles, pens or

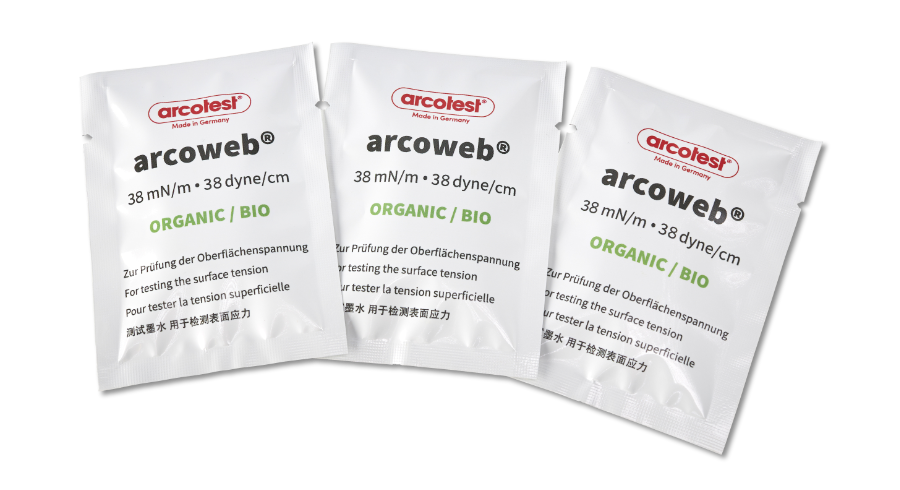

arcoweb® Disposable cloths
Not toxic • Not harmful to health •
Not subject to labelling • Not harmful to the environment
Dyne Test Inks PINK
22 to 60 dyne/cm surface tension
- Available in bottles or in pens
- PINK test ink is non-poisonous
Dyne Test Inks BLUE
18 to 105 dyne/cm surface tension
- Available in bottles or in
pens (28 to 72 mN/m) - According to ISO8296, DIN 53364
- Toxic from 24 to 57 dyne/cm
RAPIDTEST 38®
serves to check if the treatment of polyolefins has shown an effect.
Not harmful to the environment • Does not cause eye damage • Not harmful to health
RAPIDTEST 38®
Stroke width: 5 mm
Content: 5 ml
art. no. 40.66100.0
RAPIDTEST 38® Jumbo
Stroke width: 15 mm
Content: 15 ml
art. no. 40.66100.4

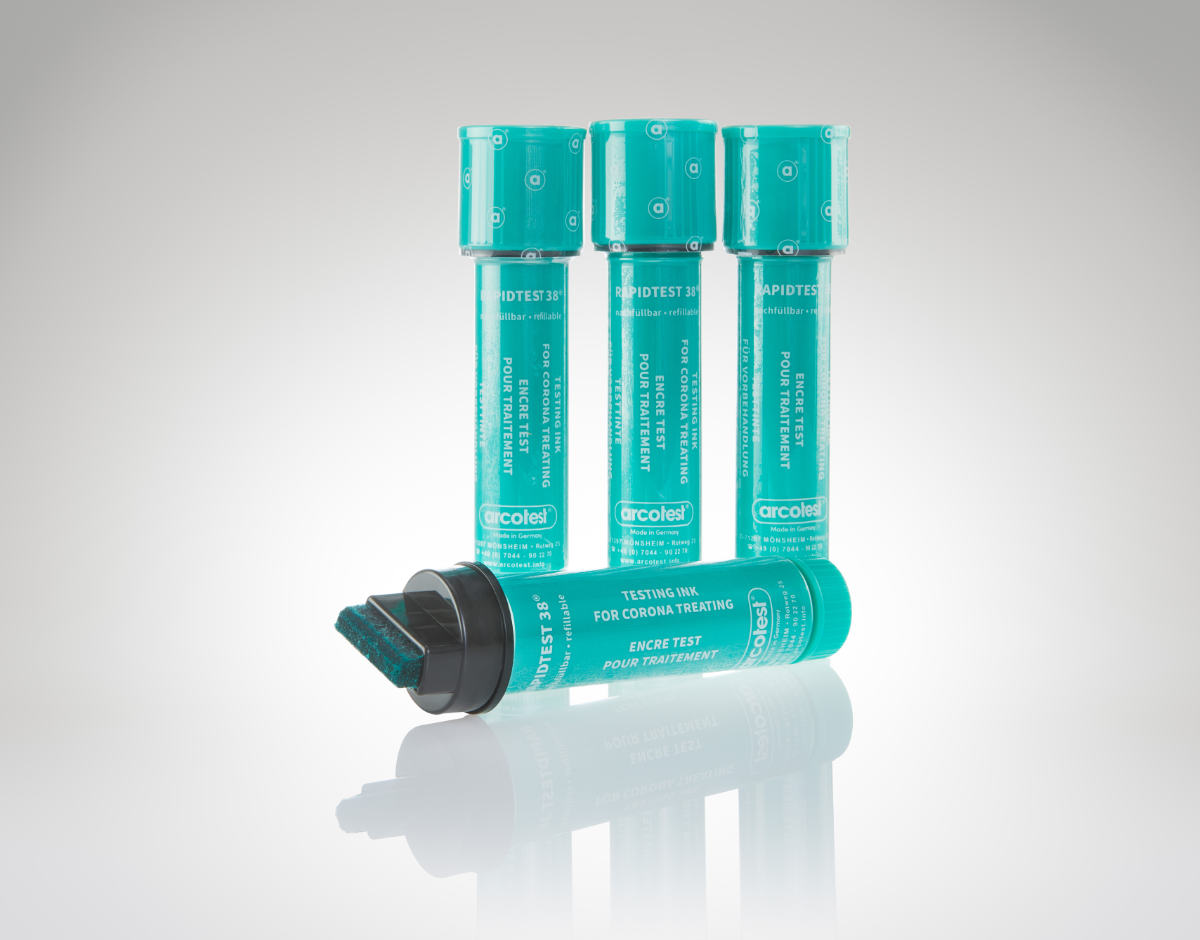

RAPIDTEST 38® Jumbo refillable
Stroke width: 30 mm
Content: 20 ml, refillable
art. no. 40.66100.5

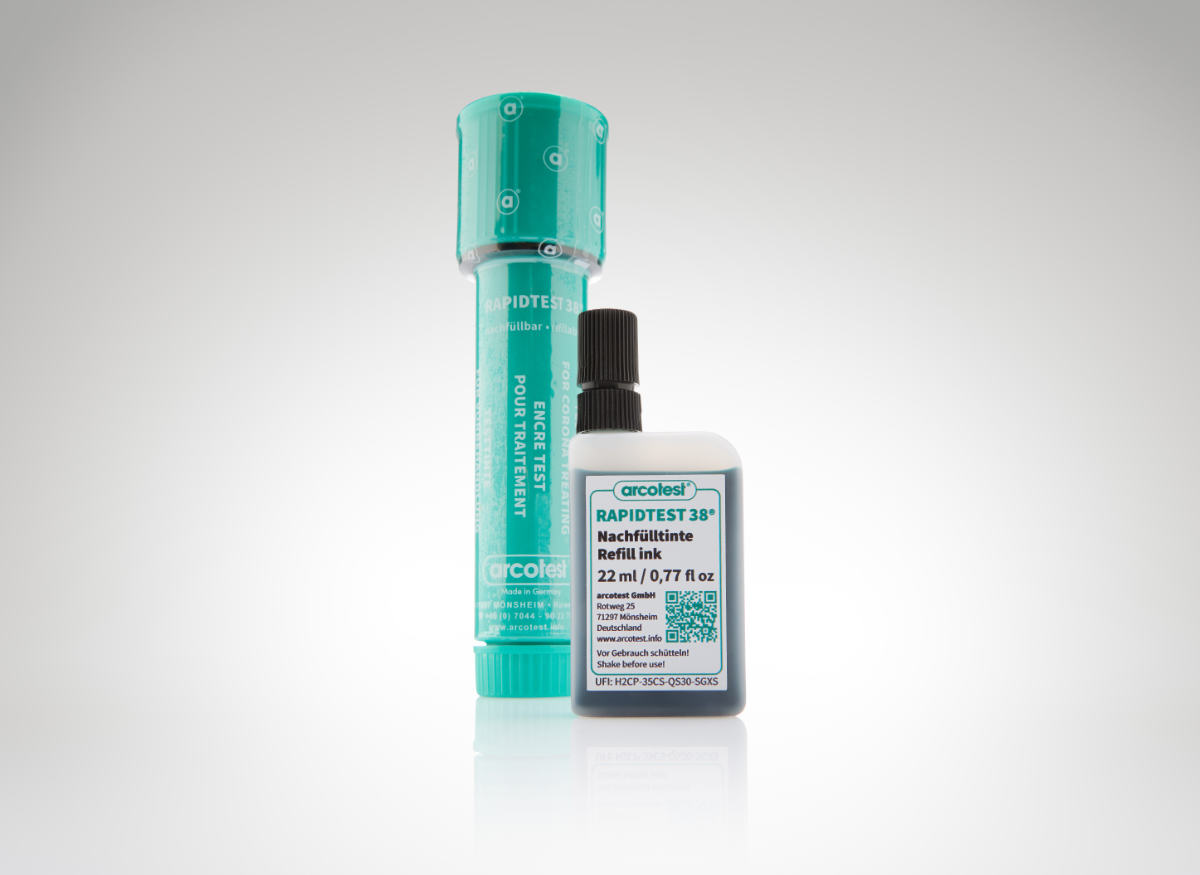

RAPIDTEST 38® Refill ink
Content: 22 ml
art. no. 40.66200.0
- archiving of the image possible
- easy to handle
- perfect for quick checks on polyolefins
- no wiping off necessary
- lasting display of result

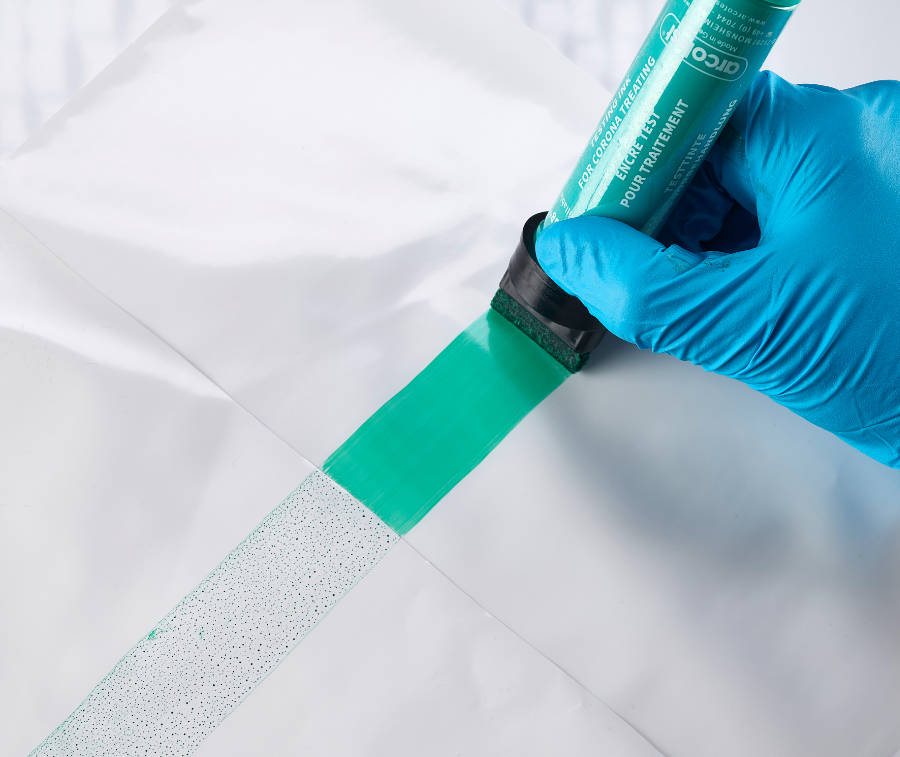

A stroke of the pen leaves a full line on the material if the material’s surface tension has a value of 38 dyne/cm or more. If the material’s surface tension is below 38 mN/m, the fluid contained in the pen will form small drops on the surface. The line applied with RAPIDTEST 38 will dry within seconds and does not need to be wiped off.
RAPIDTEST 38® serves to check if the treatment of polyolefins (polypropylene, polyethylene, polybutylene) has shown an effect.
ATTENTION:
The test fluid of QUICKTEST 38® and RAPIDTEST 38® contains solvent. This may attack solvent-sensitive materials (e.g. PS) and lead to the erroneous interpretation of test results!
Test pens should not be used if the surface is contaminated, as the residual contamination from the test surface can remain in the felt of the pens and falsify later values.
For contaminated surfaces, use arcotest® test ink in bottles with arcotest® cotton swabs.
NOT TO BE USED FOR METAL CLEANLINESS TESTING.

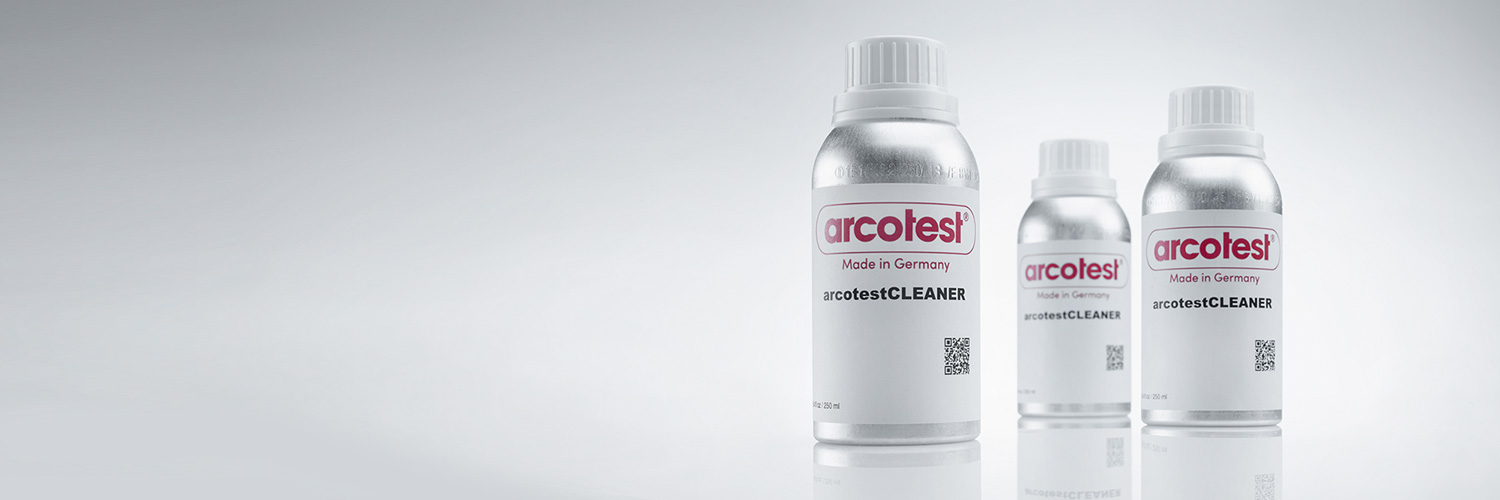

arcotestCLEANER
is a solution based on ethyl alcohol. It serves to improve cleanliness on various surfaces such as metals, glass and plastics. With the arcotestCLEANER also tested parts can be reused by wiping off the test ink. As the surfaces formulations are very different, a suitability test should be carried out before each application.
• better cleanliness due to surface cleaning
• Solvent system based on ethyl alcohol
• no unpleasant odour
• dries very quickly
• can clean and possibly increase adhesion-strength in one step
• increase adhesion strength
• easy cleaning of the applied test inks
• available in 250 ml aluminium bottles
arcotest GmbH since 1976.
We are manufacturers of test inks.
We offer a comprehensive overall program of inks, pens and accessories.
Service
Expert advice, guarantee of the given values, reliable and prompt delivery, cooperation with our customers at home and abroad have been our absolute priority for 48 years.
Quality Assurance
For quality assurance, the inks are tested using a state-of-the-art contact angle measuring device, taking temperature and density into account. Safety data sheets provide information on handling, storage and transport regulations.
Purchase orders
Orders in writing by post, fax, Email or the contact form.
